FAB25_BADGE

We’ve been asked by our friends over at FabLab Leuven to design a solder kit for the FAB25 conference in Czechia.

FAB25 logo

Design

In order to make the kit a bit more advanced we opted to use a 555 timer IC to generator a clock signal for a 4017 counter IC. This will result in LEDs lighting up one by one around the logo. A slide switch on the back allows users to disable the light show to save power.

Chip marking

Since the ICs would cover op parts of the identifying marks of the logo, we opted to mark the ICs with “25” and “Czechia”. This was done by laser engraving the ICs and filling those engravings with paint.

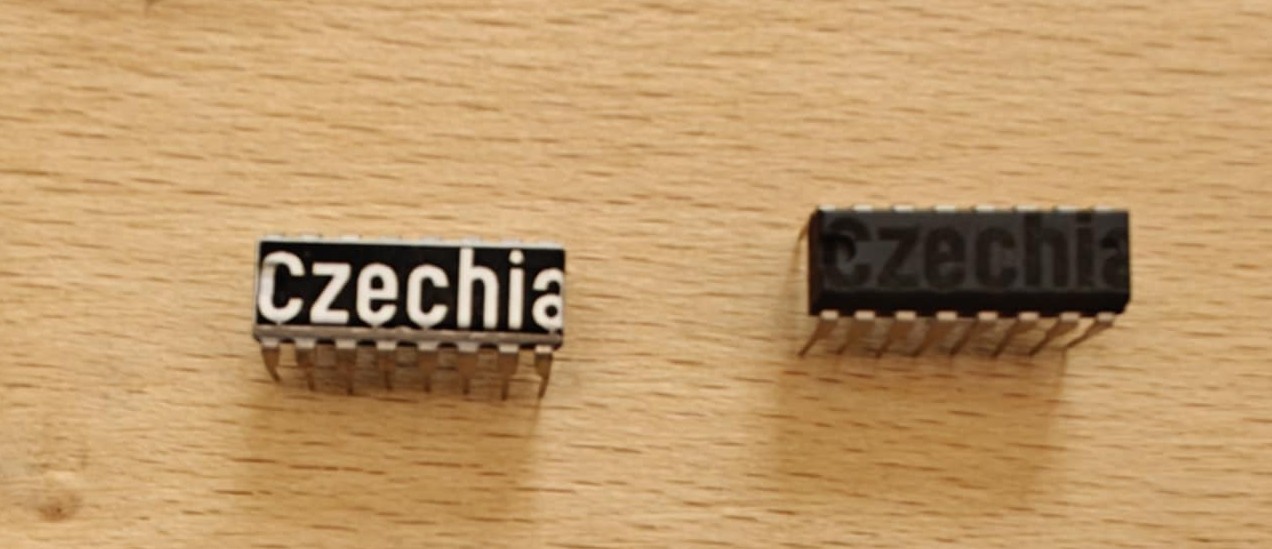

chip engraving Sample chip engraving and painting.

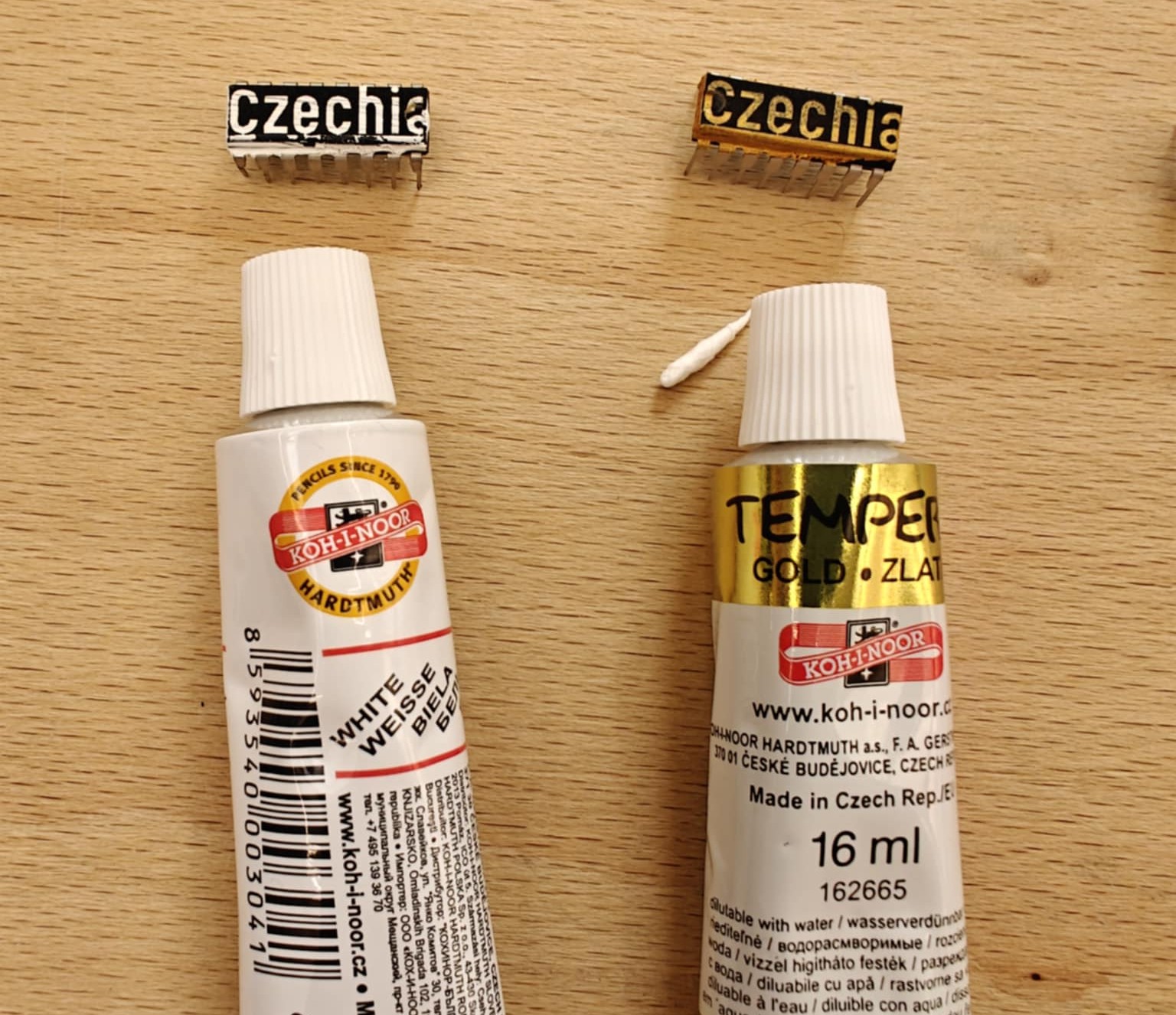

chip painting with white and gold paint First test with gold and white paint.

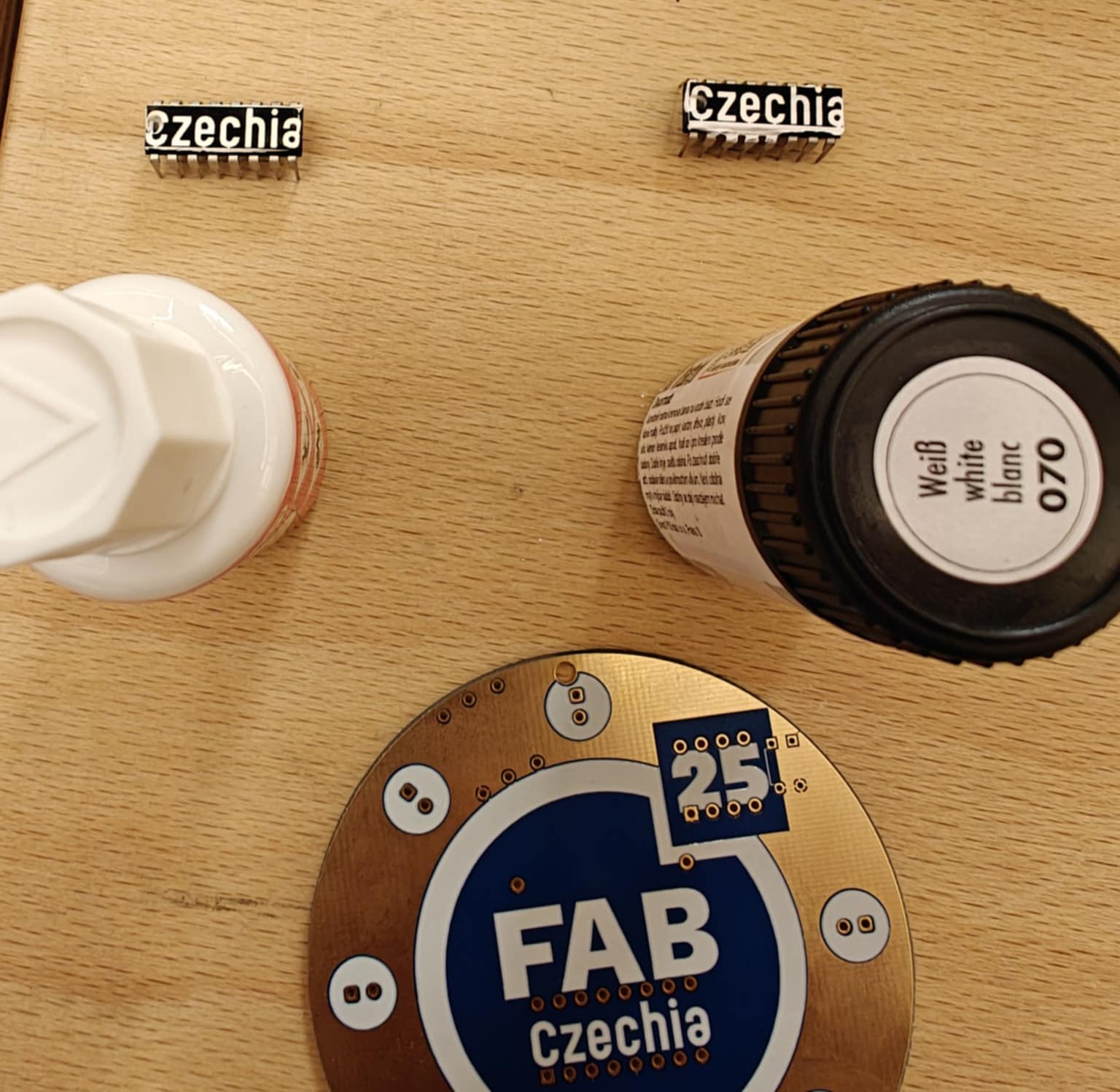

chip painting with alternative white paints Testing with different white paints.

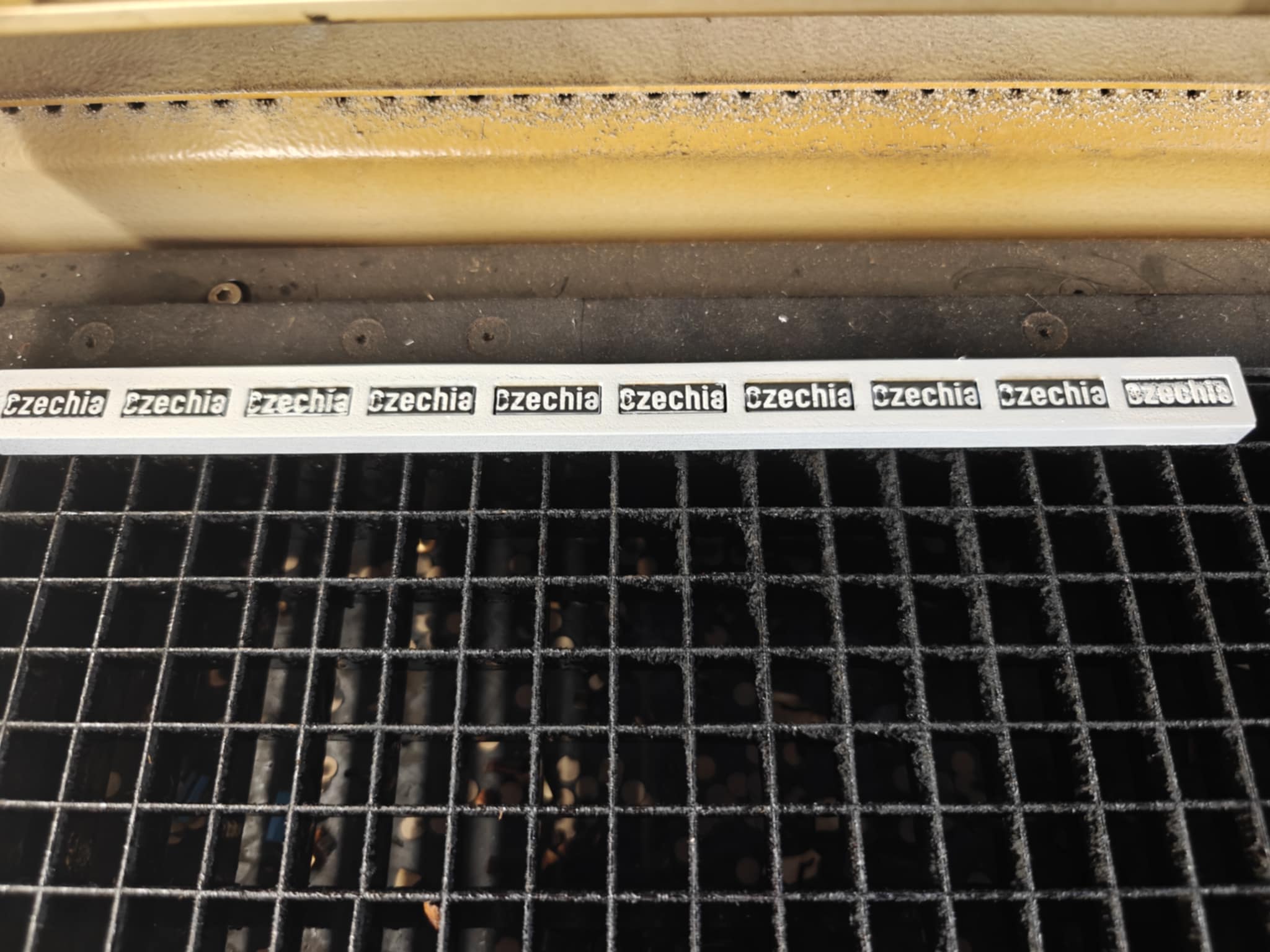

mass chip engraving and painting with a rig in a laser cutter Mass engraving of the ICs in the laser cutter with a custom jig to speed up the process (a total of 2000 chips had to be marked).

REV 00

Initial version of the design based on the FAB25 logo.

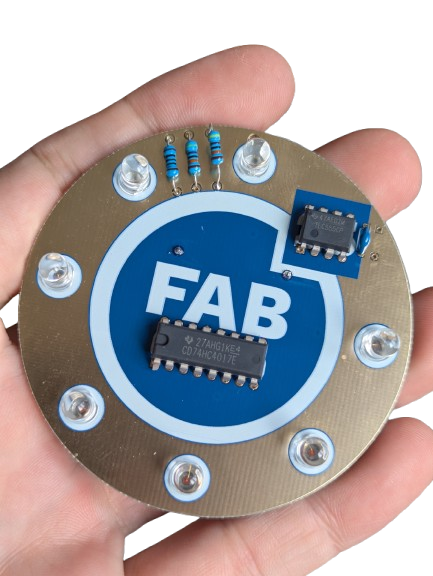

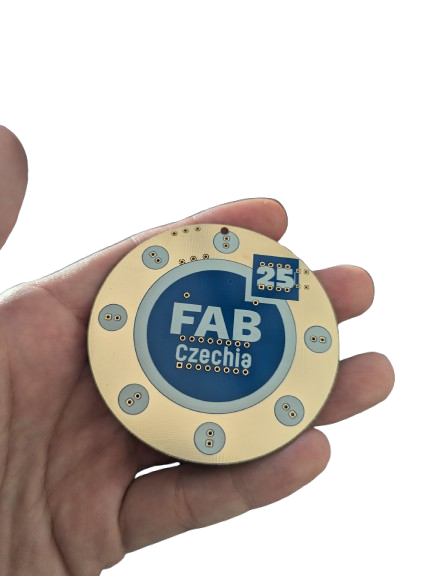

Bare PCB front Assembled PCB front

REV 01

Revision 01 is the mass production version of the kit. Besides an update to the graphical design and adding the sponsor logo, we als removed the unnecessary capacitor, added the switch and increased the animation speed by reducing the 470kΩ resistors to 100kΩ. R1 and R2 are 100kΩ, C1 is 1µF, the animation speed can be calculated using the following formula: f=1.44/[(R1+2*R2)C1]=4,8Hz

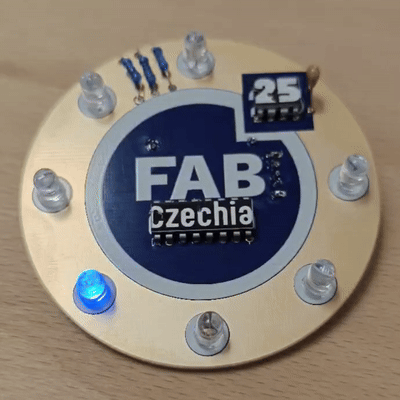

Animated FAB25 kit
